Covered Walkways
Canopies & Shelters Ltd designs, manufactures and installs covered walkways for schools, hospitals, industrial sites and retail parks across the UK, giving people a dry, sheltered route between buildings and entrances.
- Powder-coated steel frame, any RAL colour
- 5mm / 8mm polycarbonate roof, 99% UV filter
- Engineered to BS EN 1991 wind and snow loading
- Freestanding, cantilever or building-mounted
What is a covered walkway?

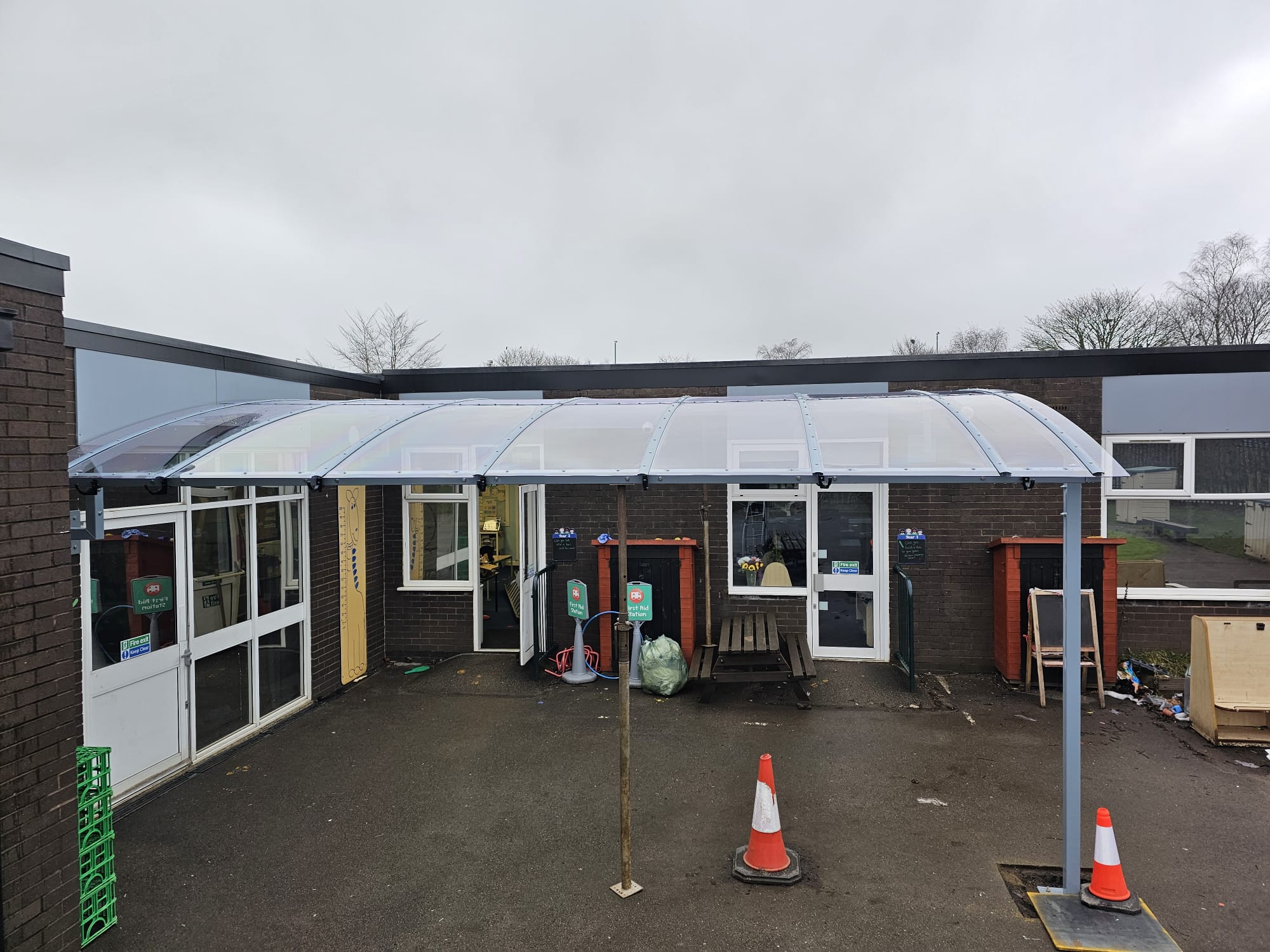

A covered walkway is a permanent, engineered structure that shelters a pedestrian route between buildings, car parks and entrances, keeping people dry as they move around a site. It is also called a walkway canopy, a linked canopy, a sheltered walkway or a colonnade.
We build each run to the length and layout of the site, so a single walkway can link a school reception to its classroom blocks, connect a hospital drop-off to the main doors, or carry staff dry from a car park to a commercial canopy entrance. Every walkway is a made-to-measure structure, not a stock unit cut to length.
Which covered walkway is best?
The best covered walkway is the one specified against six decisions: the frame, the roof material, the roof style, the size and layout, the finish, and the compliance the site needs, so no two runs are specified the same way.
The frame is powder-coated steel for the widest clear spans, or aluminium where a lighter, corrosion-resistant structure suits an exposed site. The roof material is 5mm or 8mm water-resistant polycarbonate with a 99% UV filter for daylight, or a tensioned-fabric option where a softer roofline suits the setting. The roof style follows the route: mono-pitch and curved profiles set the drainage fall, and enclosed or part-glazed sides add shelter on routes exposed to driving rain. Size and layout cover the span, the height and whether the run is freestanding, cantilever or fixed to a building. Finish is any RAL colour to match existing buildings. Compliance means the structure is engineered to BS EN 1991 wind and snow loading and installed to the Building Regulations.
For a school linking a reception to classroom blocks we usually specify a steel mono-pitch run in clear polycarbonate; for a hospital drop-off or an exposed retail-park route, a part-glazed or enclosed side adds real shelter from wind-driven rain. Where the walkway also needs to double as a covered entrance canopy at one end, we design the two as one specification.
How much does a covered walkway cost?
A covered walkway costs £450 to £700 per linear metre installed. These are indicative UK ranges to confirm at a site survey, not fixed prices, because the cost moves with the span, the height, the roof specification and whether the walkway fixes to existing buildings or needs new foundations.
Four things drive the figure per metre: the span and height (a taller, wider run needs more steel), the roof specification (polycarbonate, solid sheet or tensioned fabric, and whether the sides are open, part-glazed or enclosed), the fixing method (fixing to an existing building or a sound slab costs less than a freestanding run on new foundations), and the groundworks and access along the route. We quote every walkway after a survey and provide CAD drawings and a specification for your tender or business case.
| Covered walkway type | Indicative installed cost | Main cost drivers |
|---|---|---|
| Freestanding walkway | £450 to £700 per linear metre | span, height, new foundations |
| Building-fixed walkway | £450 to £650 per linear metre | fixing method, roof spec |
| Cantilever walkway | £500 to £700 per linear metre | column spacing, loading, span |
| Enclosed or part-glazed run | £550 to £700 per linear metre | glazing area, roof spec, sealing |
Indicative UK ranges to confirm at survey, installed and excluding any enabling works. Our work is quote-based; we do not sell fixed-price units.
Do covered walkways need planning permission?
A covered walkway usually needs planning permission and building-regulations approval, because a permanent structure on business, school or public premises is not covered by the domestic permitted-development rights that apply to a house.
A long run, a listed building, a conservation area or anything that changes an elevation typically needs a planning application, and a permanent walkway also needs building-regulations sign-off for structural loading. We supply the CAD drawings, structural calculations and specification your planning consultant or building-control officer needs, and we can advise early on what your project is likely to require.
What standards apply to covered walkways?
A covered walkway is engineered to the structural Eurocodes, principally BS EN 1991 for wind and snow loading, and installed to meet the Building Regulations for structural safety on a business, school or healthcare site. A specifier should expect load calculations, a specification and drawings for every run.
Our frames are powder-coated steel finished to any RAL colour, roofs are 5mm or 8mm water-resistant polycarbonate with a 99% UV filter or a tensioned architectural fabric, and every joint uses a glazing system with a sealed double rubber bead. For each project we provide the load calculations, CAD drawings and specification a procurement team, specifier or building-control officer needs, and for school sites we work to the access and safety expectations of an education setting.
How are covered walkways installed?
Canopies & Shelters installs covered walkways with our own teams across England, Scotland and Wales in four stages: a site survey to set out the run and the drainage, a CAD design and specification for sign-off, UK manufacture of the frame and roof, then groundworks and the on-site build.
Where the route runs alongside or through an existing building, we can fix the walkway to a sound wall or slab and avoid new foundations along that section; where it crosses open ground it stands on its own posts and pad footings. Drainage falls are set out at survey stage so water runs off the roofline and away from doorways rather than pooling along the route. We programme the install around a working school, hospital or site to keep disruption low.
How long do covered walkways last?
A covered walkway lasts 20 to 30 years or more, because a powder-coated steel frame resists corrosion and the polycarbonate roof carries a long-life 99% UV filter. The frame is the long-life element, and the roof sheets and seals are the parts most likely to be refreshed over that life.
Powder-coated steel needs little maintenance beyond periodic cleaning and a check of the fixings and gutters along the run, and polycarbonate holds its clarity for many years under its UV filter. Individual roof sheets or the double rubber bead seal can be replaced without rebuilding the frame, and we re-clad and refurbish existing walkways as well as installing new ones.
What are the benefits of a covered walkway?
A covered walkway keeps people dry and safe on a route that would otherwise cross open ground, linking buildings, car parks and entrances into one all-weather site rather than a series of exposed crossings.
For a school it links reception, classroom blocks and dining halls without pupils crossing open ground in the rain; for a hospital it carries patients and visitors dry from a drop-off to the main doors; for an industrial or retail site it moves staff and visitors between buildings and car parks under cover. Because the structure is engineered and fixed, it adds a permanent, low-maintenance asset rather than a seasonal cover.
Why choose Canopies & Shelters for covered walkways?
Canopies & Shelters is a UK manufacturer and installer of covered walkways, so one company designs your run in-house, fabricates it in our own workshops and fits it with our own installation teams nationwide, from the survey to the signed-off structure.
We work with schools and academy trusts, hospitals, industrial estates and retail parks, and we provide the CAD drawings, structural calculations and specification a procurement team needs for a tender or a business case. Every walkway is made to measure for the route, finished in any RAL colour, and delivered by our own labour and manufacture rather than subcontracted out.
Linked and cantilever spans
Freestanding, cantilever, mono-pitch and curved profiles, set out to link the buildings and entrances on your site.
Powder-coated steel frame
Steel frames finished to any RAL colour, engineered for wind and snow loading to BS EN 1991.
UV-filtering polycarbonate roof
5mm or 8mm water-resistant polycarbonate with a 99% UV filter in clear, opal or tinted sheet, sealed with a double rubber bead.
Fixed to buildings or freestanding
Runs fix to existing structures or stand on their own posts, with drainage set out at survey stage.
In-house design and UK manufacture
CAD design, UK fabrication and installation by our own teams, nationwide.
Covered Walkways questions
What is a covered walkway?
A covered walkway is a permanent, engineered structure that shelters a pedestrian route between buildings, car parks and entrances, keeping people dry as they move around a site. It is also called a walkway canopy, a linked canopy, a sheltered walkway or a colonnade.
How much does a covered walkway cost per metre?
A covered walkway costs £450 to £700 per linear metre installed, as an indicative UK range to confirm at survey. The figure moves with the span, the height, the roof specification and whether the walkway fixes to an existing building or needs new foundations.
Can a covered walkway fix to an existing building?
Yes. Where the route runs alongside a building we can fix the walkway to a sound wall or slab, which avoids new foundations along that section. Where it crosses open ground it stands on its own posts and pad footings instead.
Do covered walkways need planning permission?
Usually, yes. A permanent structure on business, school or public premises is not covered by the domestic permitted-development rights that apply to a house, so a long run, a listed building or a conservation area typically needs a planning application and building-regulations sign-off.
What standard are covered walkways engineered to?
Our covered walkways are engineered to BS EN 1991 for wind and snow loading and installed to meet the Building Regulations for structural safety. We provide load calculations, CAD drawings and a specification for every run.
How long does a covered walkway last?
A covered walkway lasts 20 to 30 years or more. The powder-coated steel frame resists corrosion and the polycarbonate roof carries a long-life 99% UV filter, so the frame is the long-life element and the roof sheets are the parts most likely to be refreshed.
Do you install covered walkways for schools and hospitals?
Yes. We manufacture and install covered walkways for schools, hospitals, industrial sites and retail parks across the UK, with runs set out to link entrances, classroom blocks, drop-offs and car parks.
Get a covered walkways quote
Tell us the sector, the span and the site. Our design team comes back with a drawing, a specification and a price, no obligation.
